1. Magno sono permanenti magnete motore instructus, industriam efficientiam per 15% amplificat, potentiae stabilis output liberat, et strepitum operantem infra 60dB servat, idoneus ad ambitus strepitus-sensitivos facit ut officinas laboratorias et exquisitas officinas.
2. Compatible cum evacuatione ductus systematis, solvit VENTILATIONIS provocationes in longo spatio aeris copia et ambitus summus resistentiae, fluxus stabilis procurandi.
3. Aluminium offensionis robore constructum, eius leve consilium vibrationem operantem minuit, dum etiam corrosionem et ictum resistentiam praebet, eamque aptam facit ad diuturnum usum in ambitus industriae.
4. Adhibitis viribus summus, corrosio-repugnans chalybe immaculato, stabilem operationem impulsoris et motoris sustinet, ne scapi rubiginem vel deformationem impediat..
Principalis Datas
| Conditio No. | Static Pressio Air Cubiculum (Pa) | Fluxus aeris (m³/h) | Pressura aeris camera (Pa) | Current (A) | Celeritas (r/min) | Virtus (W) |
| 1 | 515.63 | 126.7 | 531.61 | 1.3 | 1428 | 280 |
| 2 | 467.2 | 307.73 | 483.18 | 1.33 | 1425 | 284 |
| 3 | 411.35 | 448.84 | 427.33 | 1.33 | 1424 | 285 |
| 4 | 355.32 | 773.79 | 371.3 | 1.44 | 1408 | 310 |
| 5 | 296.36 | 1351.03 | 312.34 | 1.73 | 1366 | 373 |
| 6 | 255.25 | 1726.77 | 271.24 | 1.98 | 1310 | 434 |
| 7 | 199.31 | 1963.23 | 215.3 | 2.23 | 1255 | 438 |
| 8 | 168 | 2104.72 | 183.99 | 2.35 | 1255 | 514 |
| 9 | 94.67 | 2274.89 | 110.65 | 2.68 | 1106 | 582 |
| 10 | 22.8 | 2358.31 | 38.78 | 2.83 | 1020 | 623 |

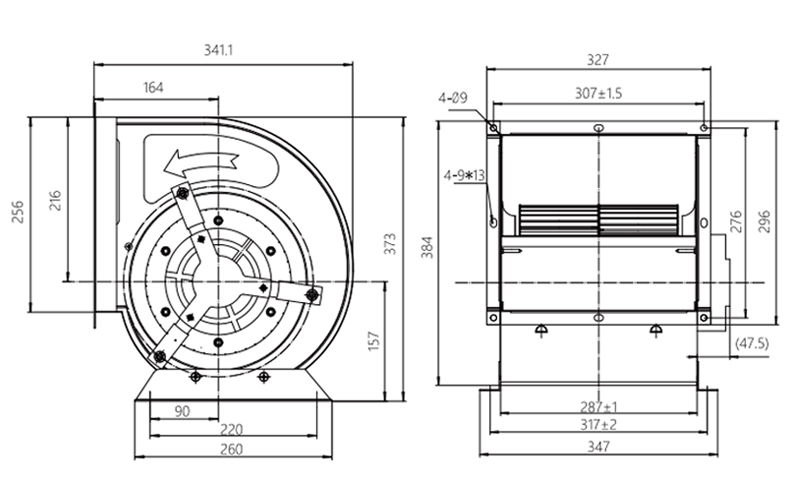

Product amplitudo

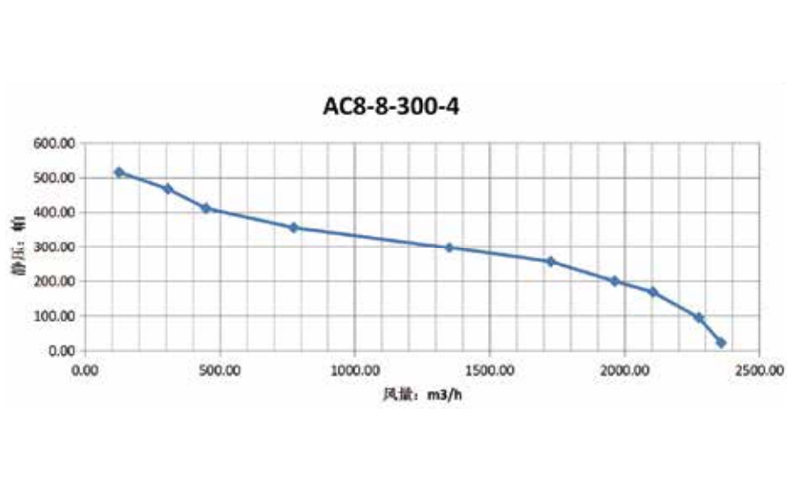

Curva:
